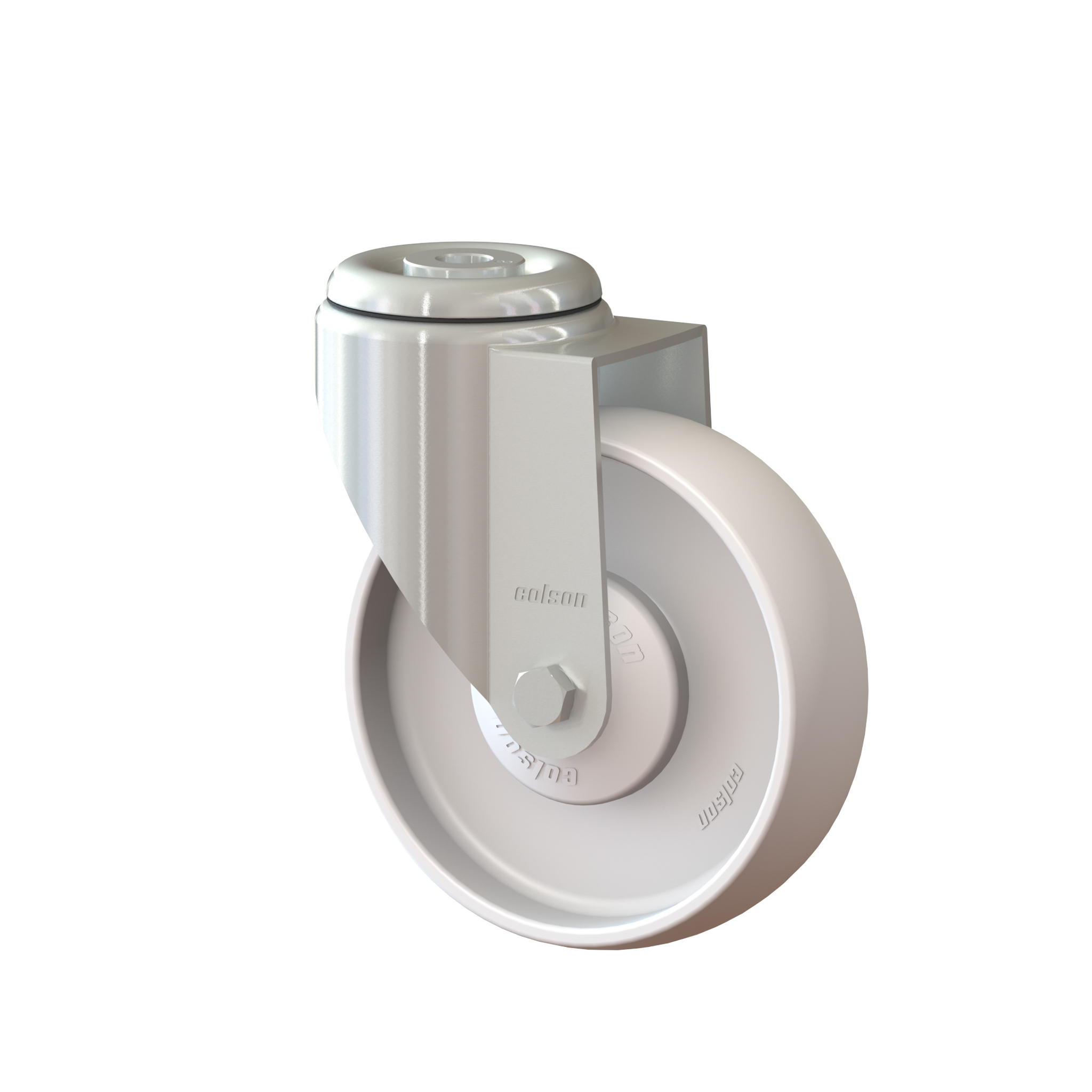

Swivel castor, 80 mm - 125 mm, 150 kg
Part number: I61AZ-NL3K080
(Veloris)
Technical data
| Diameter | 80 mm |
| Wheel width | 35 mm |
| Height | 105 mm |
| Offset | 34 mm |
| Bolt hole diameter | 12,5 mm |
| Load capacity | 150 kg |
Technical description
- pressed components made of carbon steel
- protected with an additional
- electro-galvanized zinc coating
- fork headwork with a double ball race bearing
Wheel
- injection-molded PA6 nylon in white color
- with a hardness of 75 ± 5
- Shore D
- Ø80-125 mm single ball bearing
- Ø160-200 mm double ball bearing
Variants
|
Diameter |
Wheel width |
Height |
Offset |
Bolt hole diameter |
Load capacity |
| I61AZ-NL3K080 |
80 mm |
35 mm |
105 mm |
34 mm |
12,5 mm |
150 kg |
| I61AZ-NL3K100 |
100 mm |
35 mm |
128 mm |
34 mm |
12,5 mm |
150 kg |
| I61AZ-NL3K125 |
125 mm |
35 mm |
156 mm |
38 mm |
12,5 mm |
150 kg |
