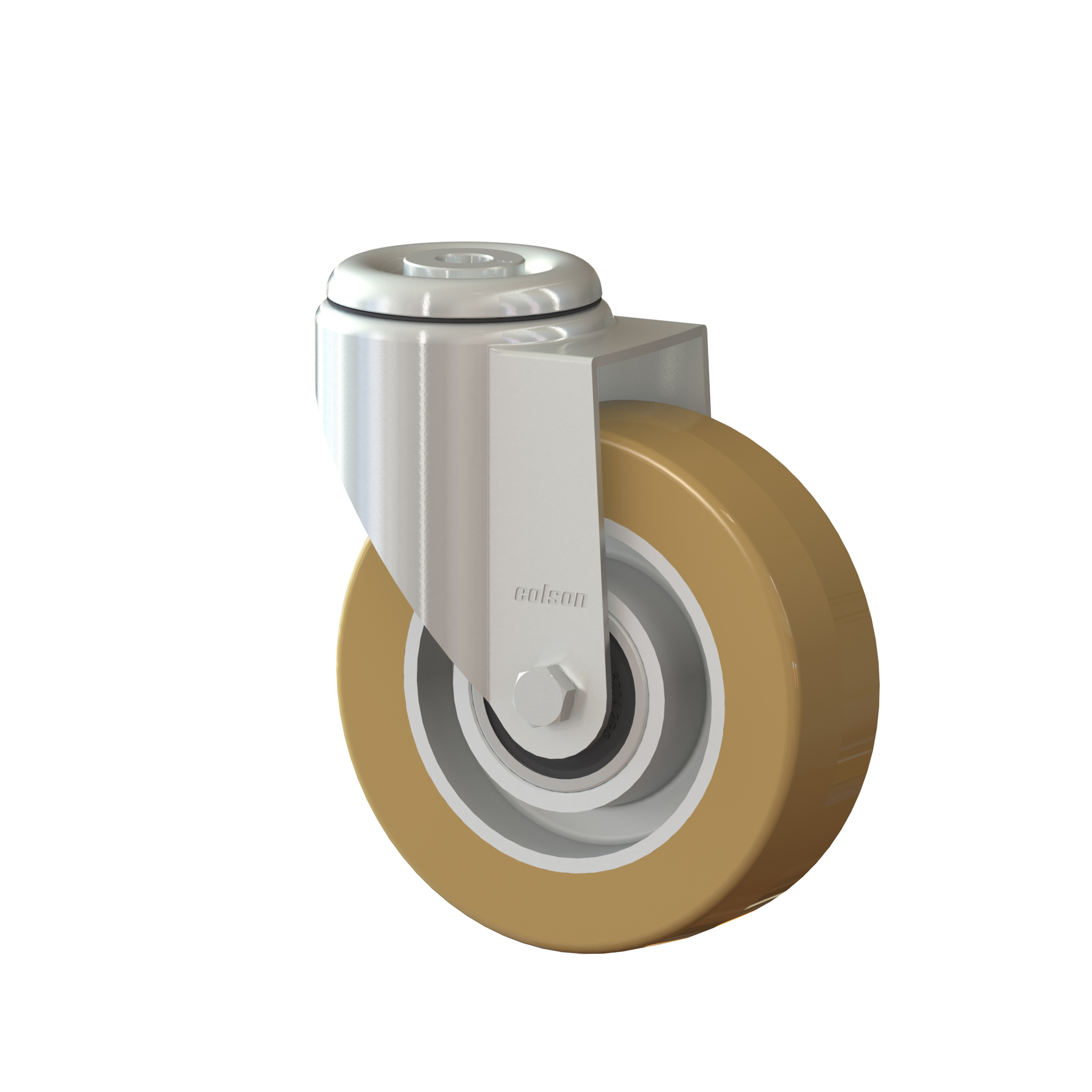

Swivel castor, 100 mm, 150 kg

Part number: I61AZ-XM9T100-C04
(Veloris)

Technical data

Diameter	100 mm
Wheel width	40 mm
Height	128 mm
Offset	34 mm
Bolt hole diameter	12,5 mm
Load capacity	150 kg

Technical description

• pressed components made of carbon steel
• protected with an additional
• electro-galvanized zinc coating
• fork headwork with a double ball race bearing



Wheel

• die-cast aluminium hub
• wheel tread made of cast polyurethane in
• honey-brown color
• with a hardness of 95 +/- 5 Shore A
• double ball bearing
• *On request: antistatic version or soft tread 75 +/- 5 Shore A available.
