KSL-41C-P77 (VIVAX)
100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 80 kg |
| Weight | 590 g |

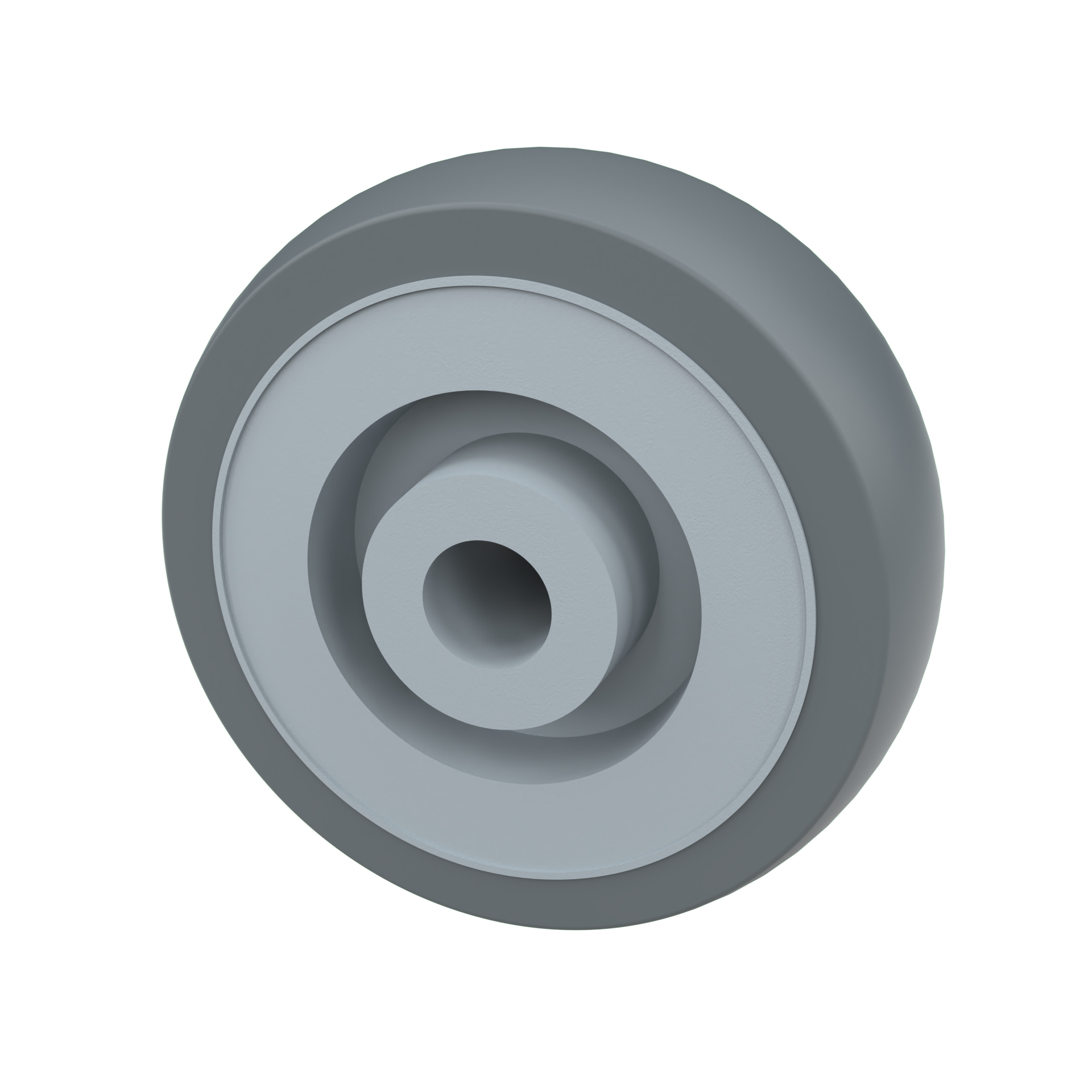

Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL-41C-P95 (VIVAX)
100 mm - 125 mm, 80 kg - 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 140 mm |
| Offset | 43 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 75x50/72x52 mm |
| Load capacity | 80 kg |
| Weight | 600 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys
KSL2-41C-L10 (VIVAX 2.0)
100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 46 mm |
| Bolt hole diameter | 10 mm |
| Load capacity | 100 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

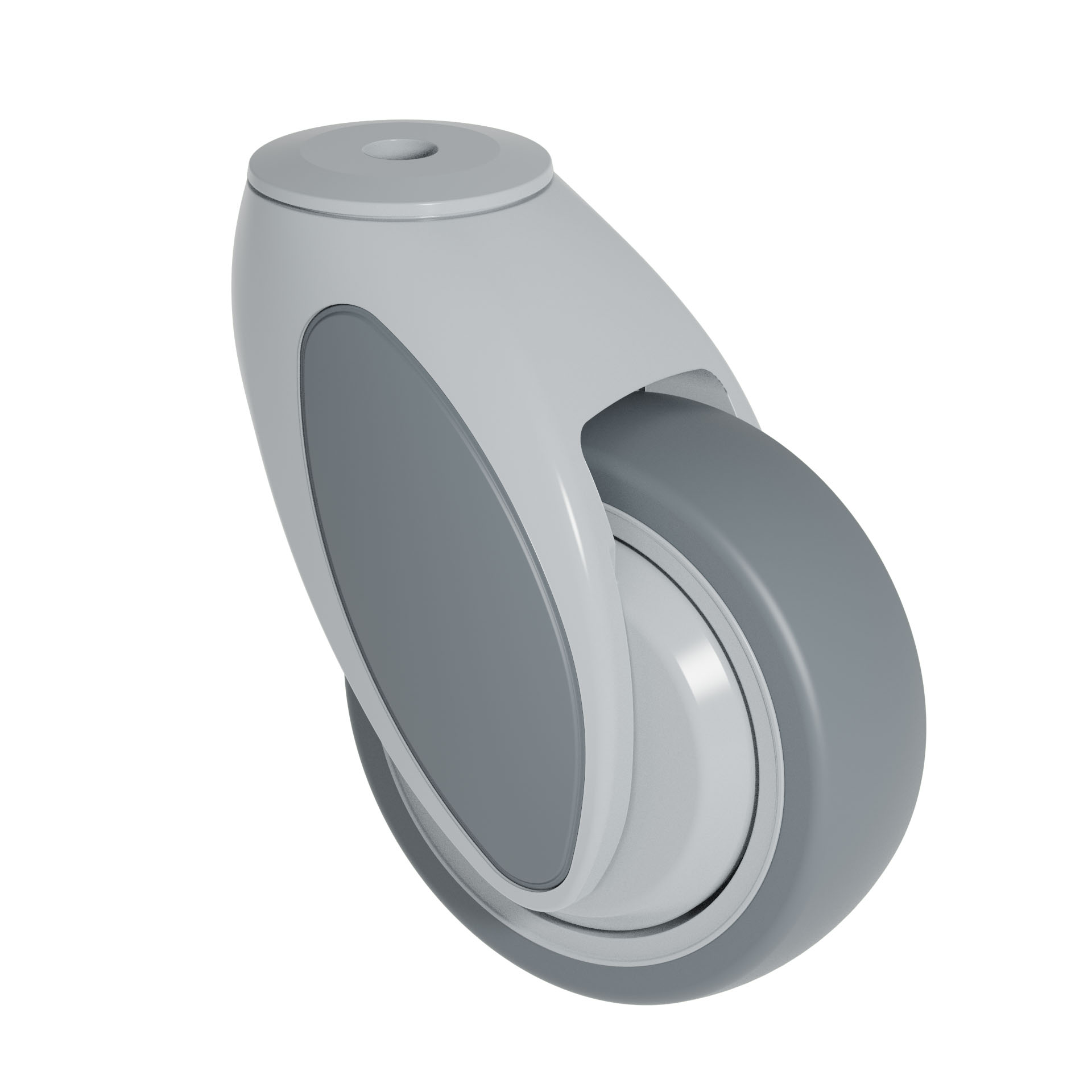

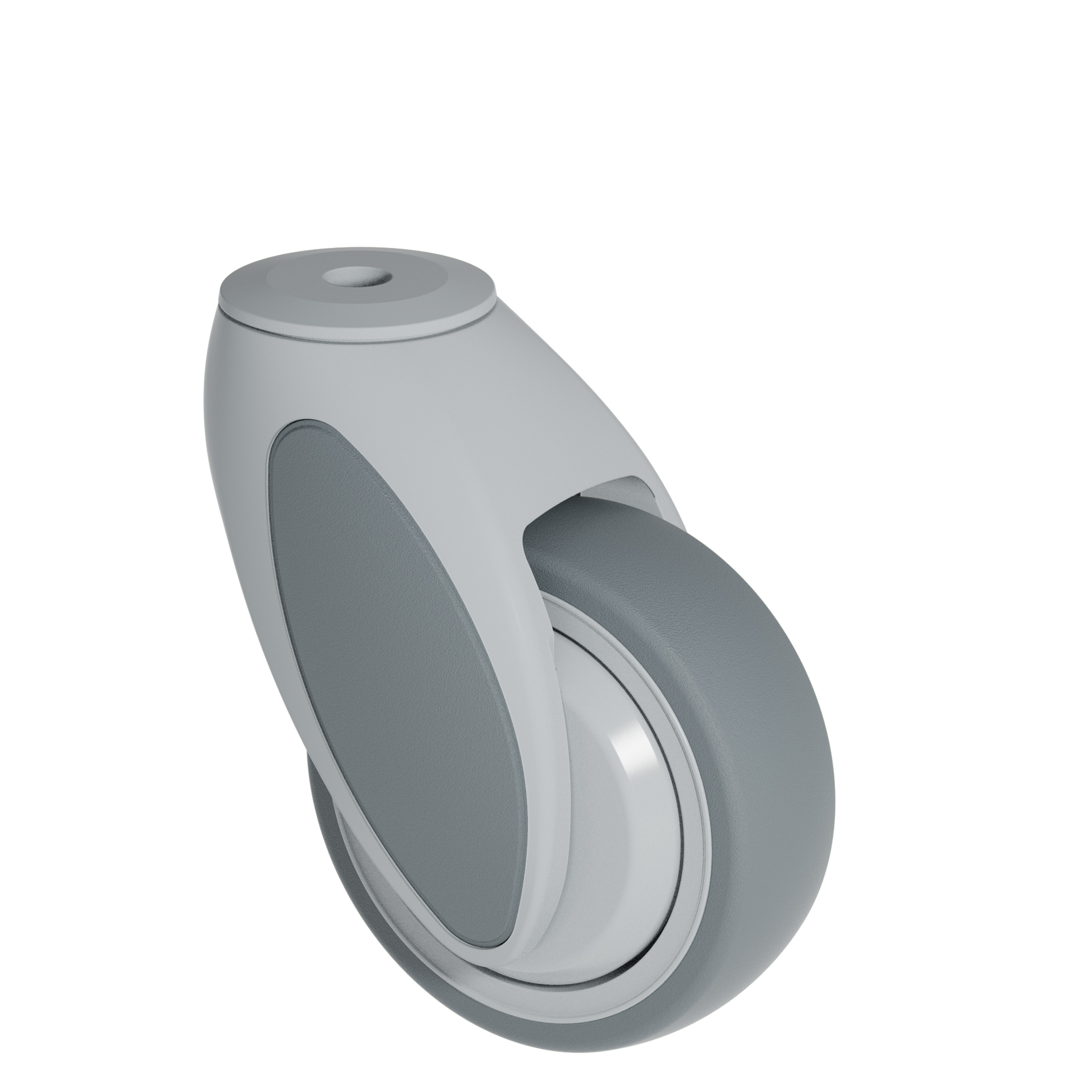

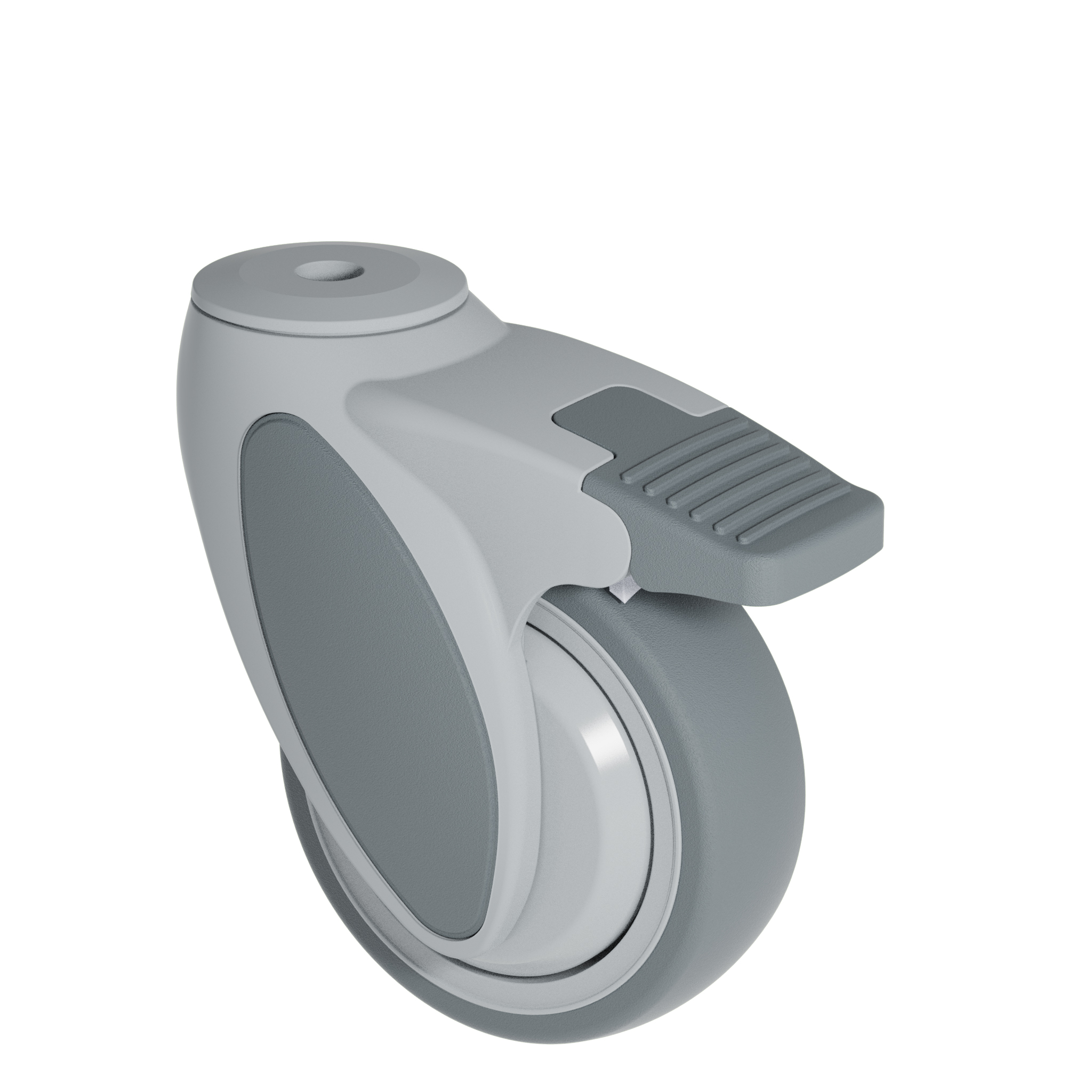

KSL2-41C-L12 (VIVAX 2.0)
100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 135 mm |
| Offset | 46 mm |
| Bolt hole diameter | 12 mm |
| Load capacity | 100 kg |
| Weight | 420 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

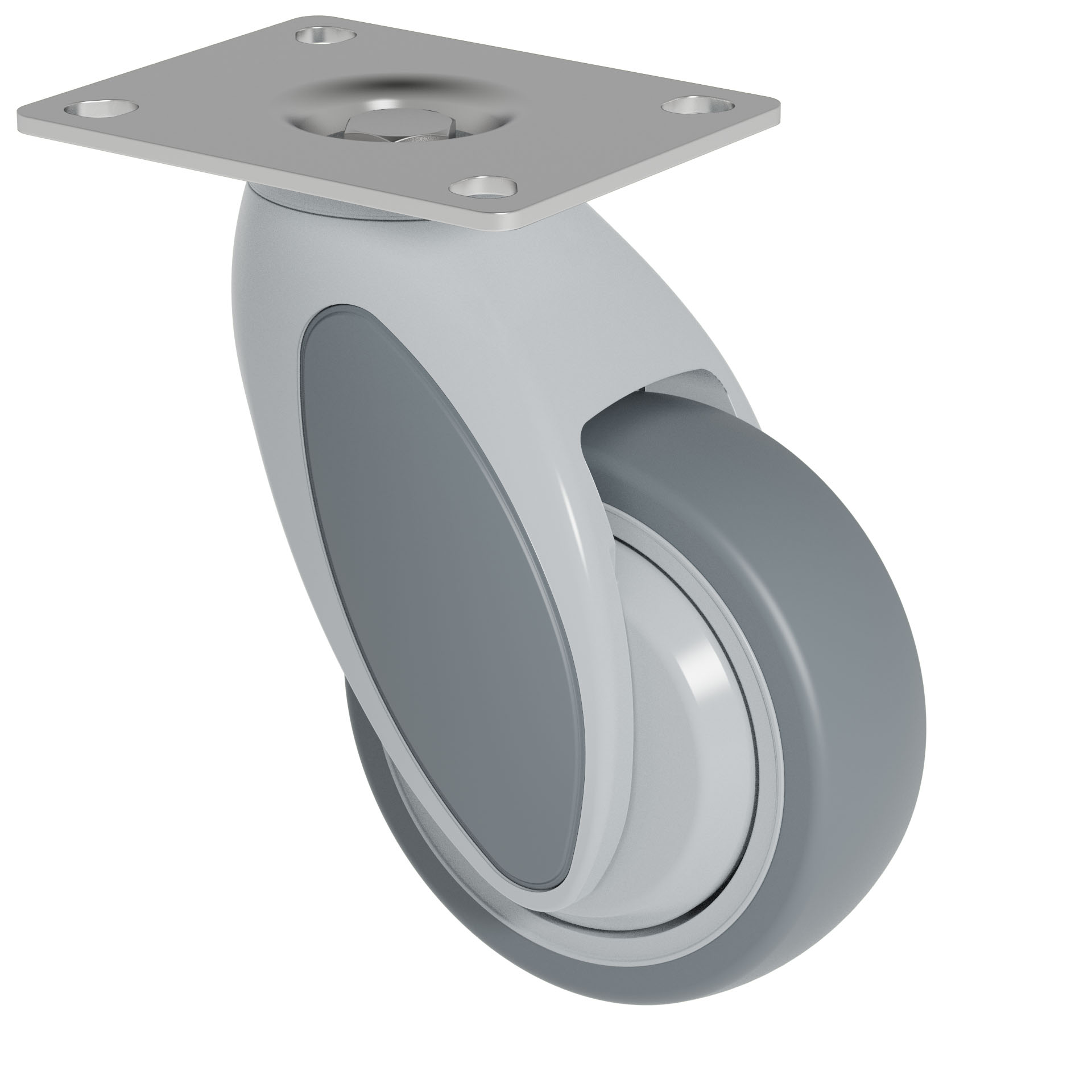

KSL2-41C-P100 (VIVAX 2.0)
100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 100x80 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80x60/76x55 mm |
| Load capacity | 100 kg |
| Weight | 620 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

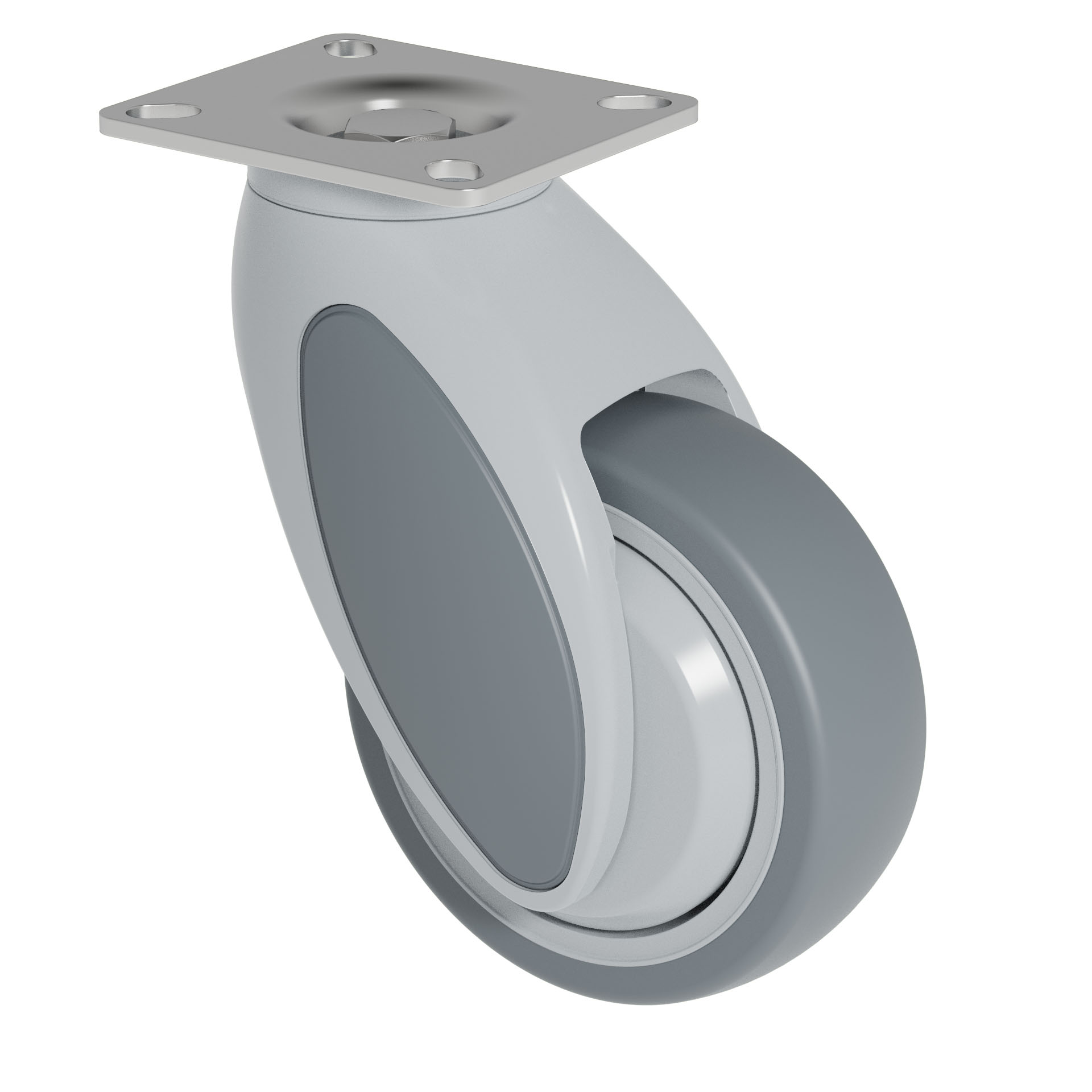

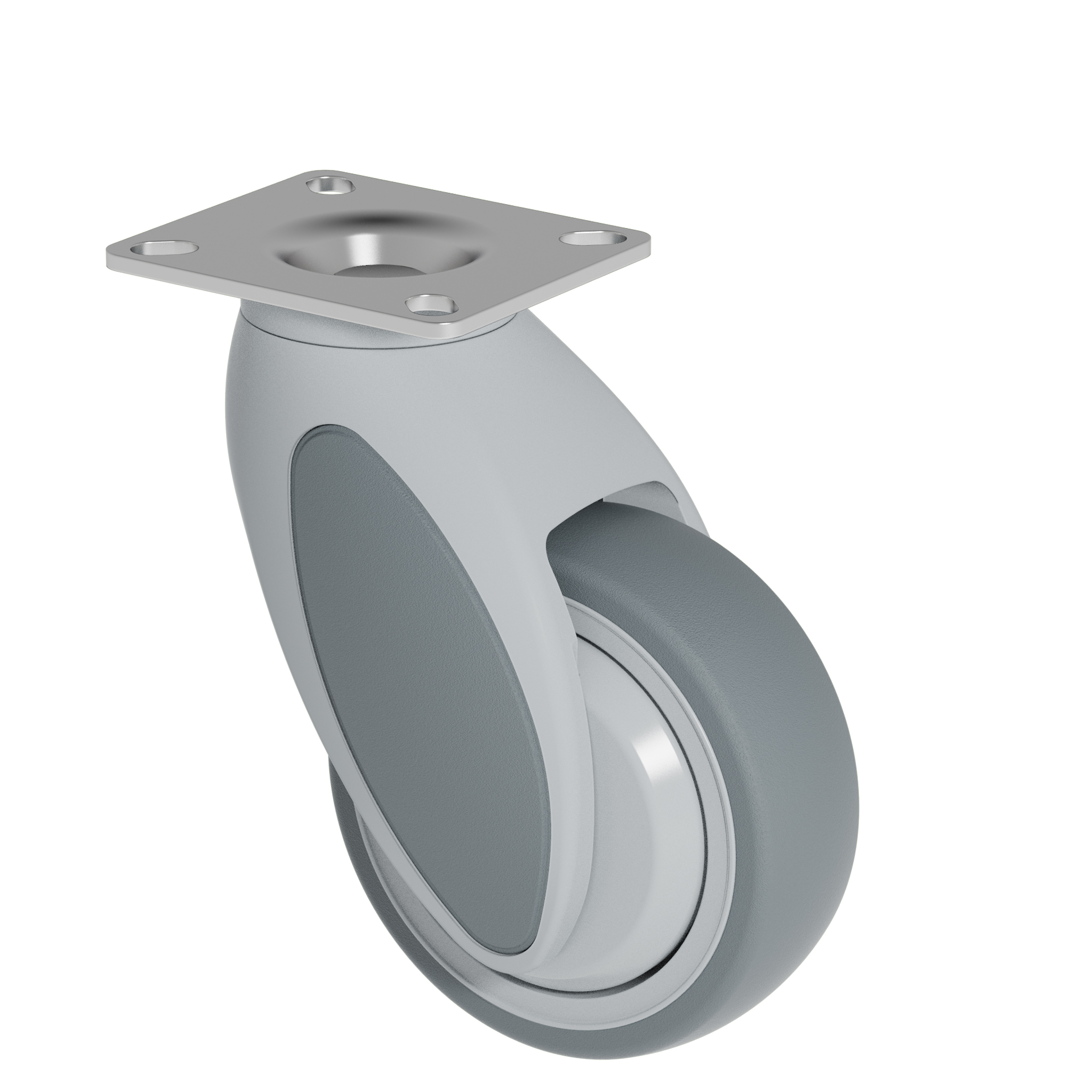

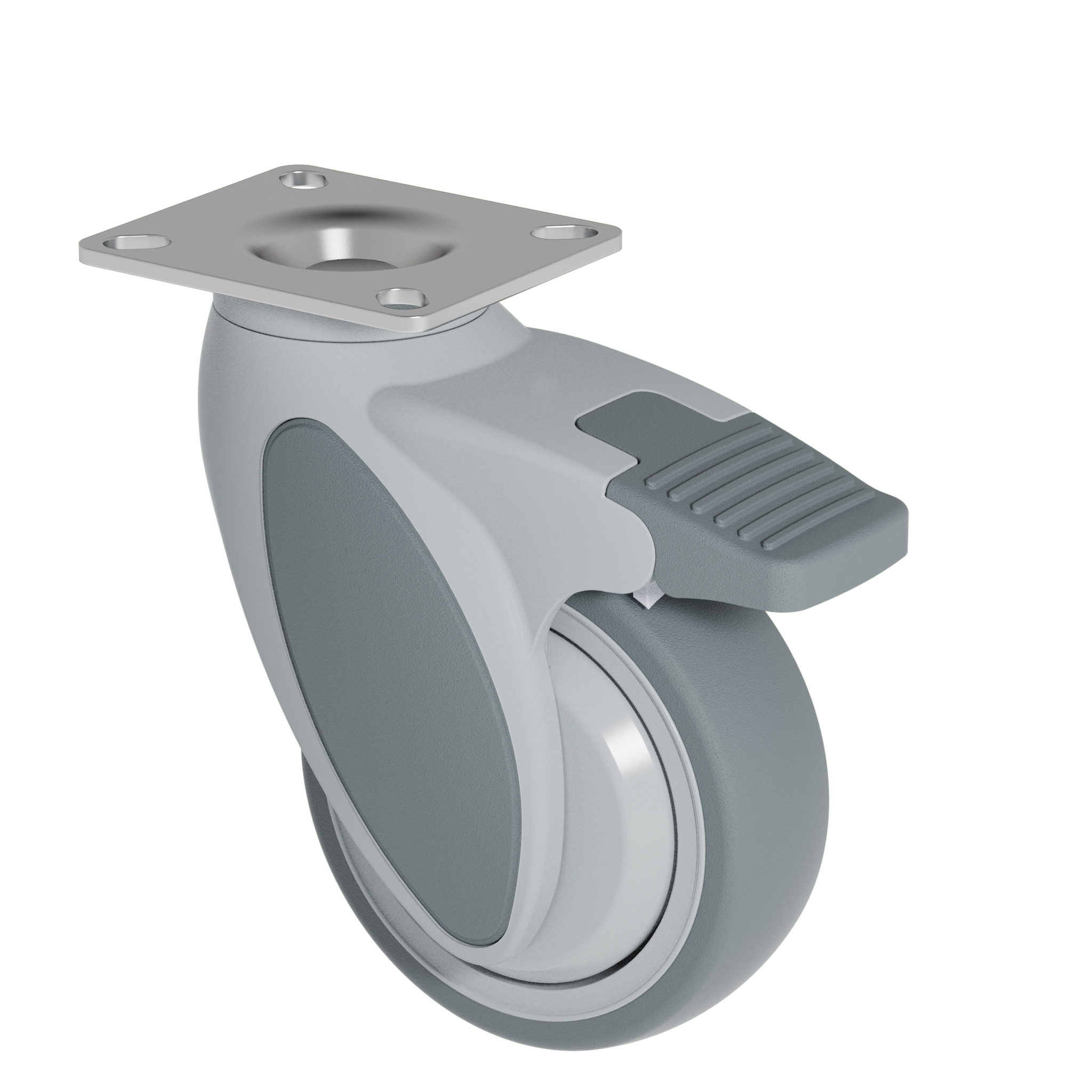

KSL2-41C-P77 (VIVAX 2.0)
100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 77x66 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 61x51/56x46 mm |
| Load capacity | 100 kg |
| Weight | 590 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

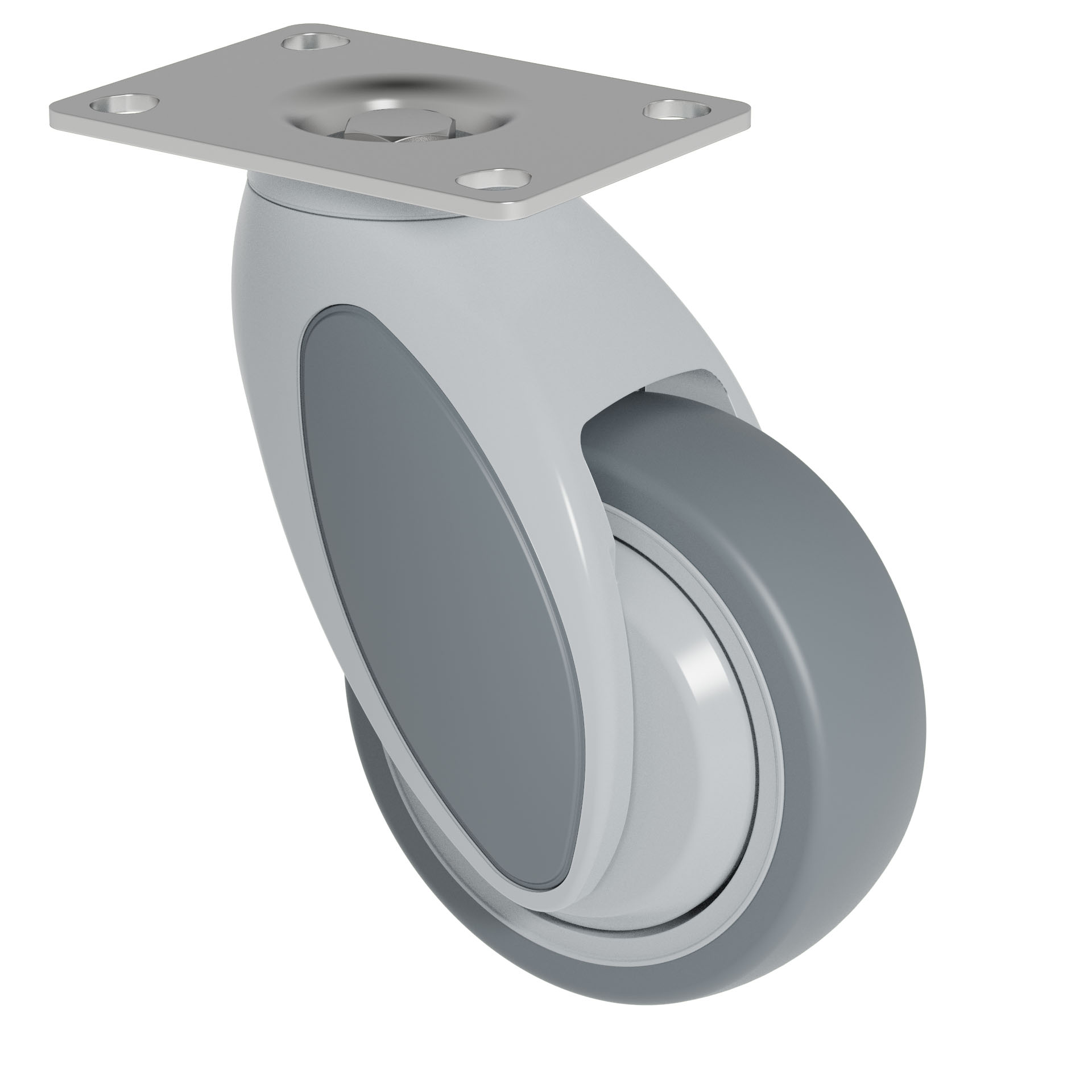

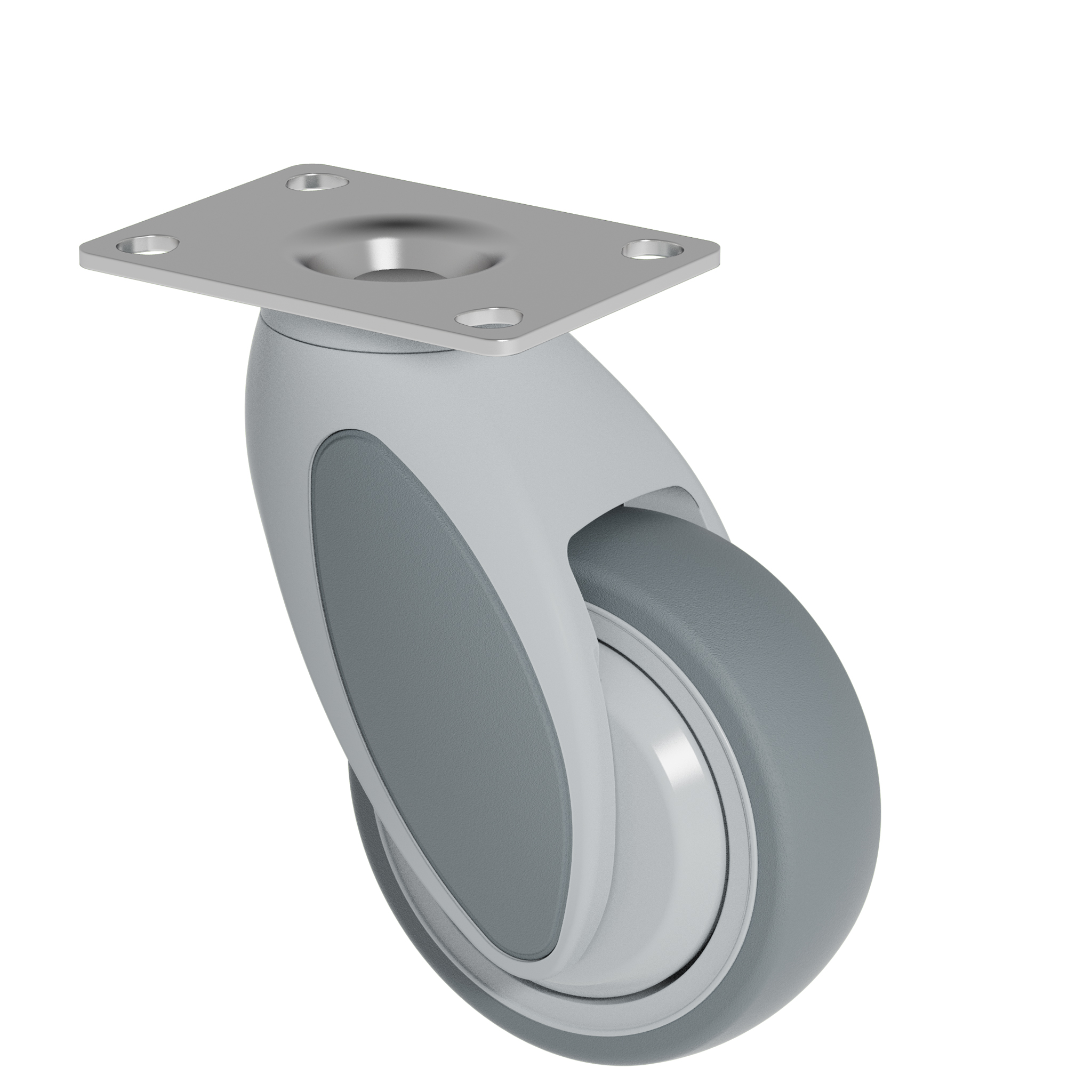

KSL2-41C-P95(VIVAX 2.0)
100 mm - 125 mm, 100 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 32 mm |
| Height | 142,5 mm |
| Offset | 46 mm |
| Top plate dimensions | 95x70 mm |
| Top plate hole diameter | 8,5 mm |
| Dist. between holes | 75x50/72x52 mm |
| Load capacity | 100 kg |
| Weight | 600 g |
Wheel
- TPE tread (Shore A 87)
- polypropylene wheel body
- thread guard
- ball bearing
- non-oiling
- on request further variants available
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- diagnostic equipment
- electronic equipment
- food industry
- food transport equipment
- medical-technical equipment
- transport trolleys

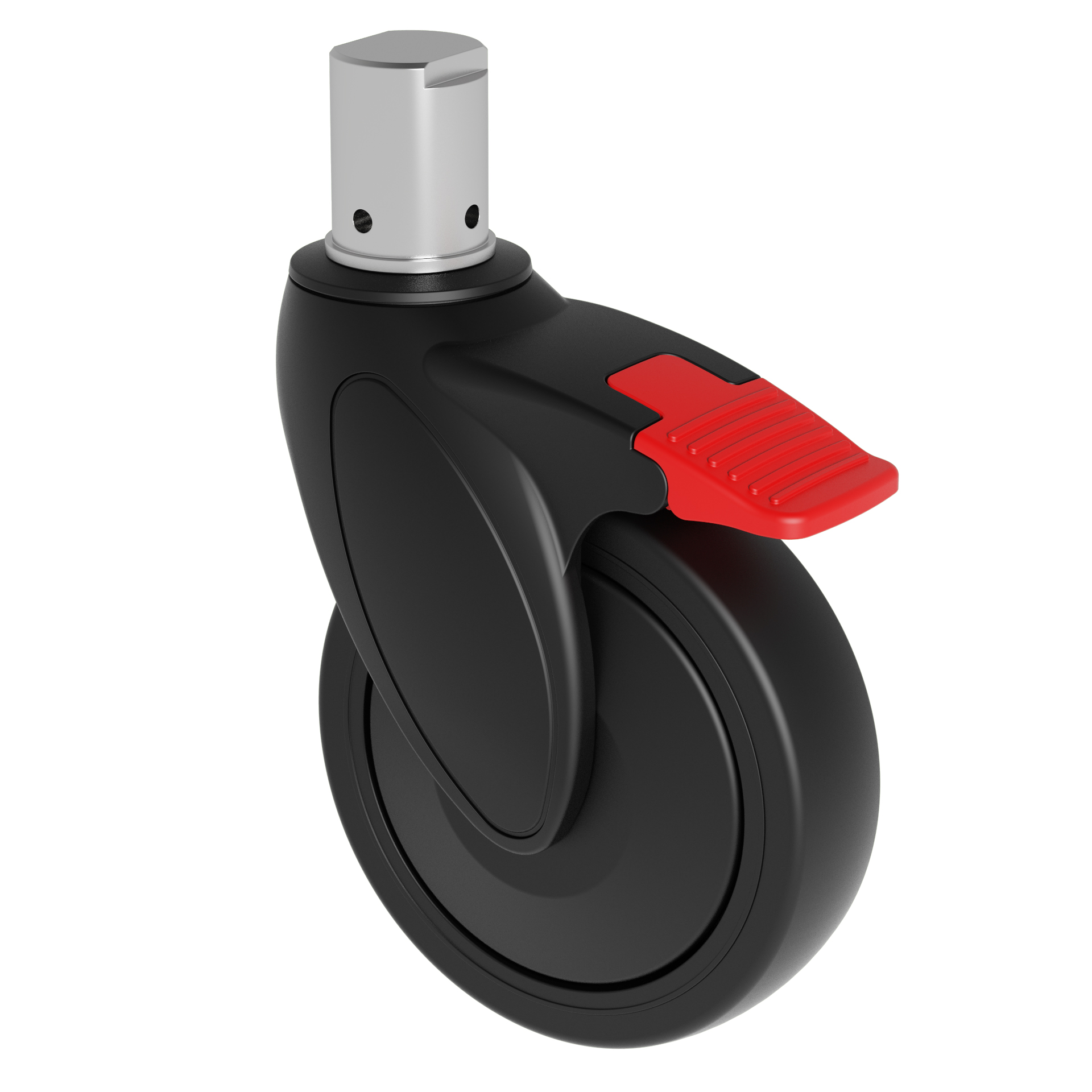

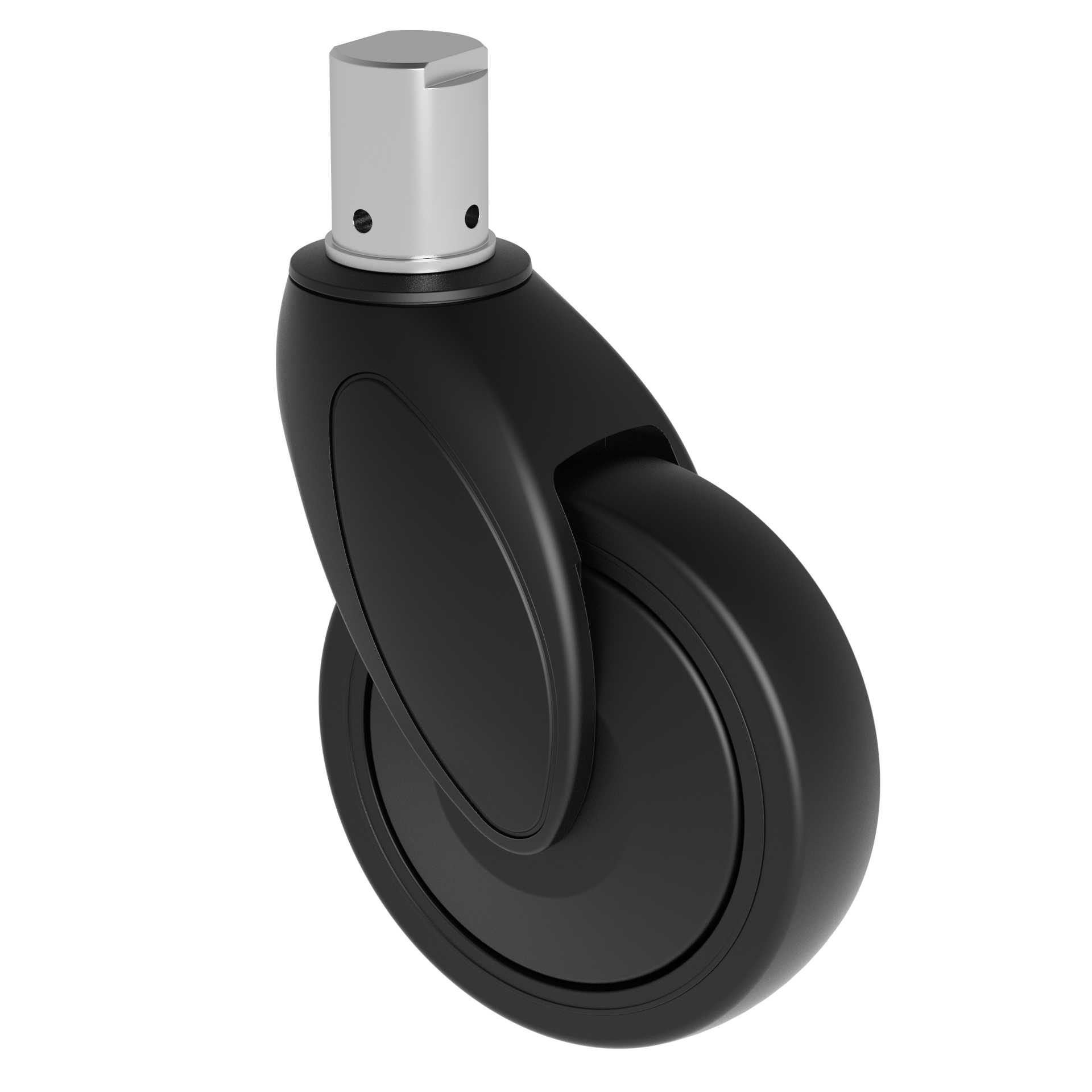

KSL2-51C-Z32X40 M6-7 V03 (VIVAX 2.0)
125 mm, 100 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 32 mm |
| Height | 164 mm |
| Offset | 46 mm |
| Stem size | 32x40 mm |
| Load capacity | 100 kg |
Wheel
- wheel series 1C
- polypropylen wheel center
- thermoplastic tyre (TPE, Shore A 87)
- thread guard
- deep groove ball bearing
- also available with other wheel variants
Technical description
- plastic castor
- fork made of high-strength impact-resistant nylon
- swivel fork head with sealed deep groove ball bearing
Areas of application
- medical & diagnostic equipment
- electronic equipment
- food transport equipment
- laundry carts
- transport trolleys, etc.
M18QZ-UF2K125-AS (398q 29K125y K2351ZA PRIMACY)
125 mm - 200 mm, 150 kg
Technical data
| Diameter | 125 mm |
| Tread width | 32 mm |
| Height | 158 mm |
| Offset | 40 mm |
| Stem size | 28x100 (41°/52°) mm |
| Brake swivel radius | 103 mm |
| Load capacity | 150 kg |
M18QZ-UF2K150 (398q 29K150v K2351ZA PRIMACY)
398q 29K150v K2351 100 mm - 200 mm, 100 kg - 150 kg
Technical data
| Diameter | 150 mm |
| Tread width | 32 mm |
| Height | 188 mm |
| Offset | 42 mm |
| Stem size | 28x100 (41°/52°) mm |
| Brake swivel radius | 117 mm |
| Load capacity | 150 kg |
| Weight | 1192 g |
Wheel
- thermoplastic polyurethane tyre (TPU) iron grey RAL 7011, Shore A 95 plastic wheel centre and plastic thread guard, silver grey RAL 7001 precision ball bearing
Technical description
- die-cast aluminium load-bearing housing
- highly polished plastic cover
- precision ball bearings in the fork head
- suitable for cleaning in disinfection cabins
- smooth selection function
- integrated selection mechanism with total locking brake "q"
- and direction locking brake "r"
- permanently grease filled in the switch mechanism
- also available with electrically conductive wheel
Areas of application
- care beds
- hospital beds
- intensive care beds
- medical equipment
- op beds
- op tables
