Transport Appliance Castors

The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from Colson are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.

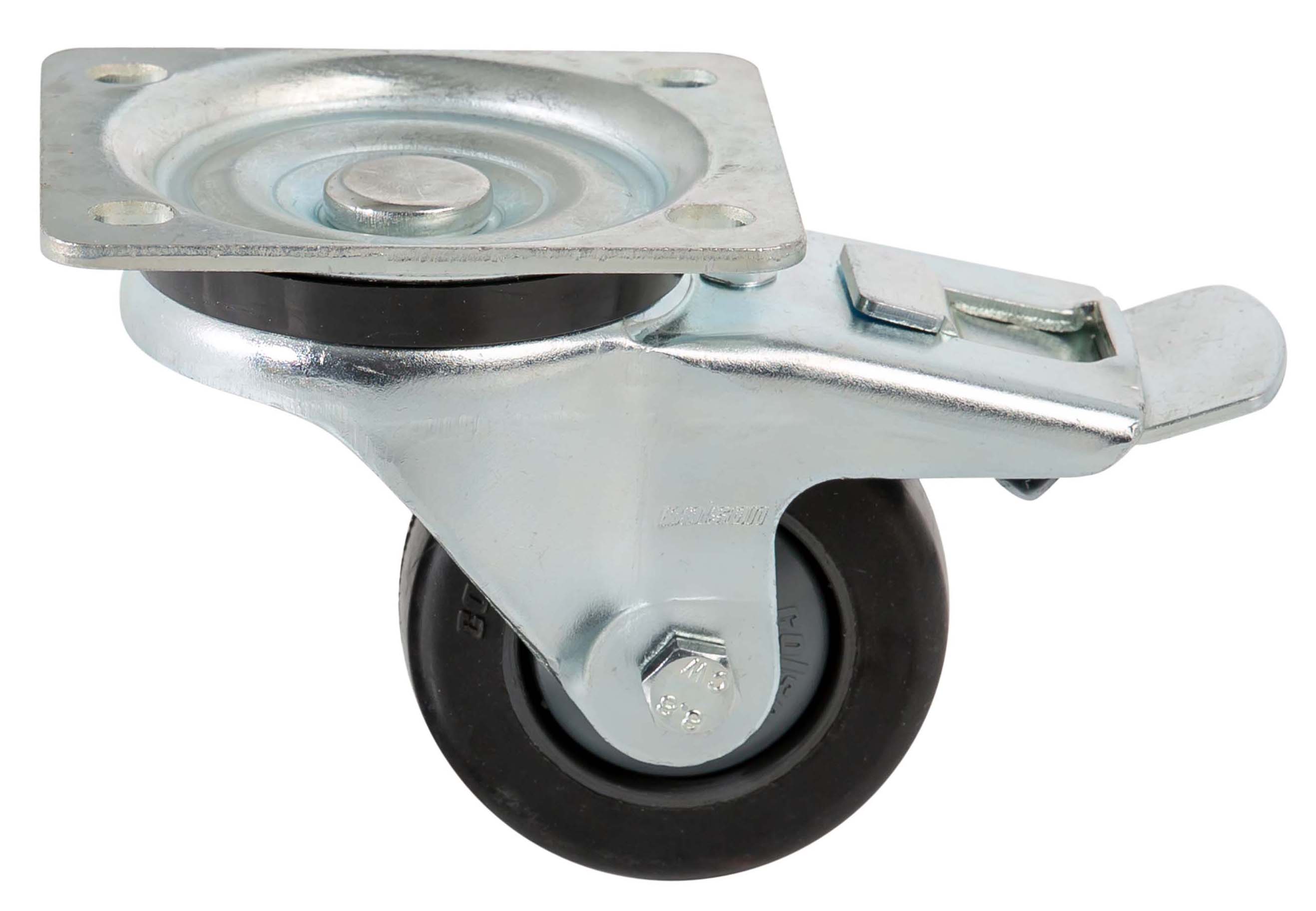

BTRB 0802 5080
BTRB 0802 5080


80 mm - 250 mm, 150 kg - 475 kg

Technical data

Diameter 80 mm
Hub length 42 mm
Height 105 mm
Offset 38 mm
Wheel axle diameter 8 mm
Threaded stem size 35 mm
Top plate dimensions 105 x 86 mm
Top plate hole diameter 9 mm
Dist. between holes 80/77 x 60 mm
Load capacity 150 kg
Weight 1.2 kg
Reach compliant Rohs compliant

Wheel

  • Glass fibre reinforced polyamide wheel with black rubber tyre
  • (Shore A 65) with one deep groove ball bearing

Technical description

  • Swivel fork of deep drawn zinc-coated steel
  • Swivel bearing with double ball raceways and sealring
  • with total lock brake and an extra sturdy
  • plate (4 mm) and fork legs (3.5 mm)
  • for even higher load capacity
