Transport Appliance Castors
The global world of networking is shaping new demands on logistics and the transport business. Mobility is being understood in a new way. Not only across national borders, but in the internal flow of goods. Castors from Colson are solid and reliable components within this agile cycle. They move trolleys, workbenches, switch cabinets, cleaning equipment and other mobile facilities – and have just one goal in the process: to guarantee quality – forever.

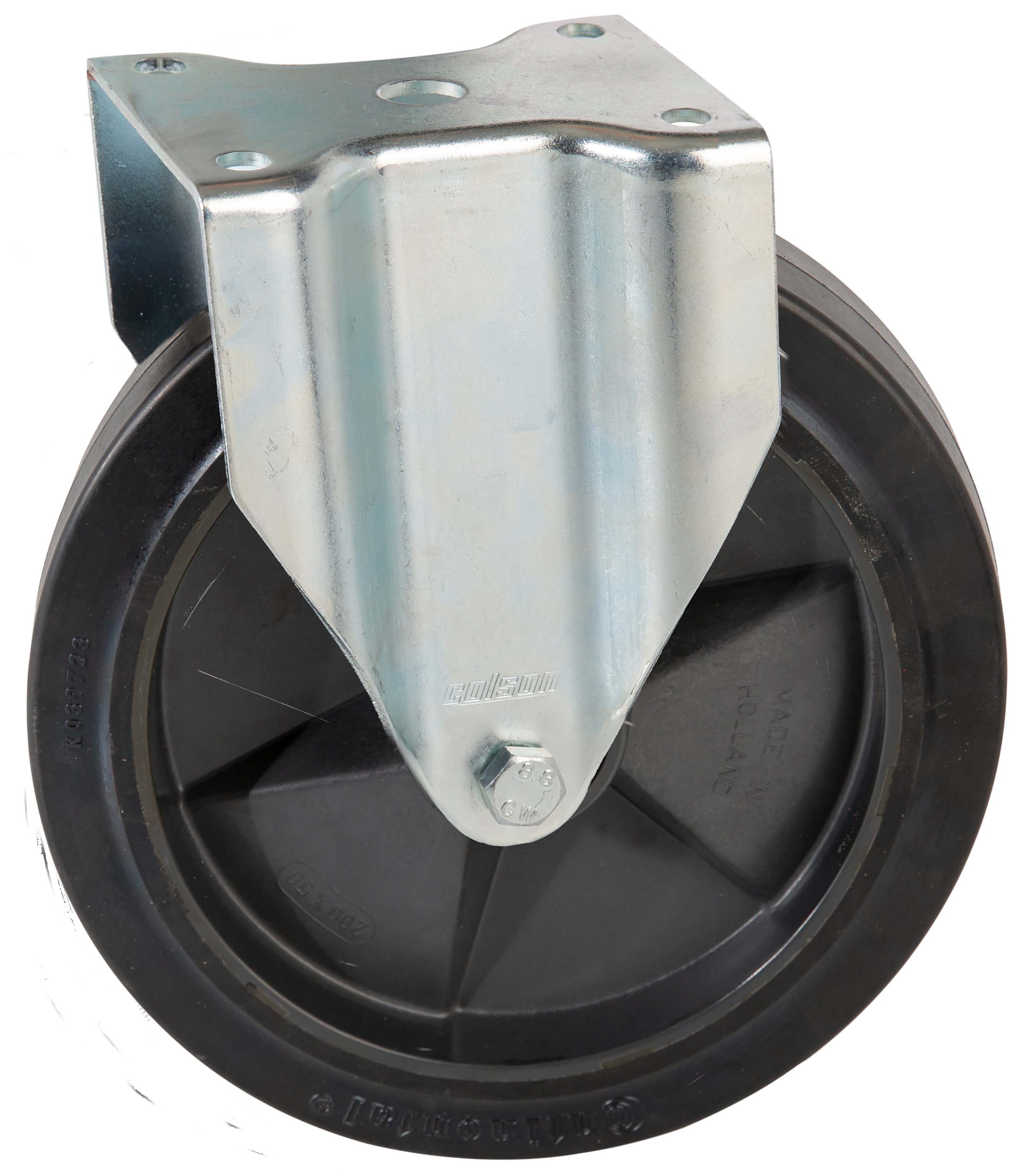

FTRB 2503 6443
80 mm - 250 mm, 150 kg - 475 kg
Technical data
| Diameter | 250 mm |
| Hub length | 64 mm |
| Height | 290 mm |
| Offset | 53 mm |
| Wheel axle diameter | 20 mm |
| Threaded stem size | 50 mm |
| Top plate dimensions | 135 x 110 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 80/75 mm |
| Load capacity | 475 kg |
| Weight | 3.1 kg |
Wheel
- Glass fibre reinforced polyamide wheel with black rubber tyre
- (Shore A 65) with two deep groove ball bearings
Technical description
- Rigid fork of zinc-coated sheet steel with an
- extra sturdy plate (4 mm) and fork legs (3.5 mm)
- for even higher load capacity
