FSRN 0803 6153
FSRN 0803 6153 80 mm - 200 mm, 175 kg - 650 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 28 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 175 kg |
| Weight | 0.7 kg |
Wheel
- Glass fibre reinforced polyamide wheel
Technical description
- Rigid fork of zinc-coated sheet steel
FSTB 0803 6153
FSTB 0803 6153 80 mm - 125 mm, 110 kg - 240 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 40 mm |
| Hub length | 45 mm |
| Height | 110 mm |
| Offset | 35 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105 x 85 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80 x 60 mm |
| Brake swivel radius | 120 mm |
| Load capacity | 110 kg |
| Weight | 0.8 kg |
Wheel
- Glass fibre reinforced polyamide hub, with fully elastic black rubber tyre
- (Shore A 65) and two deep groove ball bearings
Technical description
- Rigid fork of zinc-coated sheet steel
FWCU 1002 6030
100 mm - 300 mm, 250 kg - 1800 kg
Technical data
| Diameter | 100 mm |
| Wheel width | 30 mm |
| Height | 150 mm |
| Offset | 36 mm |
| Top plate dimensions | 100x85 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 80x60 mm |
| Load capacity | 250 kg |
Wheel
- Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings
Technical description
- Heavy duty rigid fork for dual wheels, in extra thick pressed and welded steel. Black lacquered.
FWCU 1253 60302
125 mm - 500 mm, 600 kg - 7000 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 2x30 mm |
| Height | 197 mm |
| Offset | 60 mm |
| Top plate dimensions | 170x170 mm |
| Top plate hole diameter | 13 mm |
| Dist. between holes | 130x130 mm |
| Load capacity | 600 kg |
Wheel
- Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings
Technical description
- Heavy duty swivel fork for dual wheels, in extra thick pressed and welded steel. With total lock brake and a tapered roller bearing in the swivel head. Black lacquered.
FXNY 0802 7100
80 mm - 200 mm, 200 kg - 600 kg
Technical data
| Diameter | 80 mm |
| Wheel width | 32 mm |
| Hub length | 45 mm |
| Height | 111 mm |
| Offset | 40 mm |
| Wheel axle diameter | 8 mm |
| Top plate dimensions | 105x86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77x60 mm |
| Load capacity | 200 kg |
Wheel
- Polyamide wheel with one sealed stainless steel
- deep groove ball bearing
Technical description
- Heavy duty rigid fork of stainless steel
FZCU 3006 6TR0
FZCU 3006 6TR0 300 mm, 2270 kg
Technical data
| Diameter | 300 mm |
| Wheel width | 76 mm |
| Hub length | 92 mm |
| Height | 422 mm |
| Offset | 72 mm |
| Wheel axle diameter | 31.8 mm |
| Top plate dimensions | 178 x 153 mm |
| Top plate hole diameter | 16.5 mm |
| Dist. between holes | 127 x 102 mm |
| Load capacity | 2270 kg |
| Weight | 25.7 kg |
Wheel
- Cast iron wheel with bonded-on polyurethane tyre (Shore A 92) with two taper roller bearings
FZNY 0652 6150
65 mm - 200 mm, 300 kg - 1000 kg
Technical data
| Diameter | 65 mm |
| Wheel width | 37 mm |
| Hub length | 45 mm |
| Height | 97 mm |
| Offset | 45 mm |
| Wheel axle diameter | 15 mm |
| Top plate dimensions | 105x86 mm |
| Top plate hole diameter | 9 mm |
| Dist. between holes | 80/77x60 mm |
| Load capacity | 300 kg |
Wheel
- Heavy-duty polyamide wheels with 2 sealed ball bearings. Operating temperatures from -40°C to + 80°C
Technical description
- Heavy duty swivel fork of deep drawn zinc-coated steel Swivel head with sealed precision ball bearings and a sealring
JBAB 1253 6440
JBAB 1253 6440 125 mm - 250 mm, 220 kg - 550 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 220 kg |
| Weight | 3.8 kg |
Wheel
- Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel
JBAB 1253 6440/B
JBAB 1253 6440/B 125 mm - 250 mm, 220 kg - 550 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 220 kg |
| Weight | 3.8 kg |
Wheel
- Aluminium wheels with black rubber tyre (Shore A 72) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel
- with wheel brake. Swivelhead with sealed precision
- ball bearings and a grease nippel

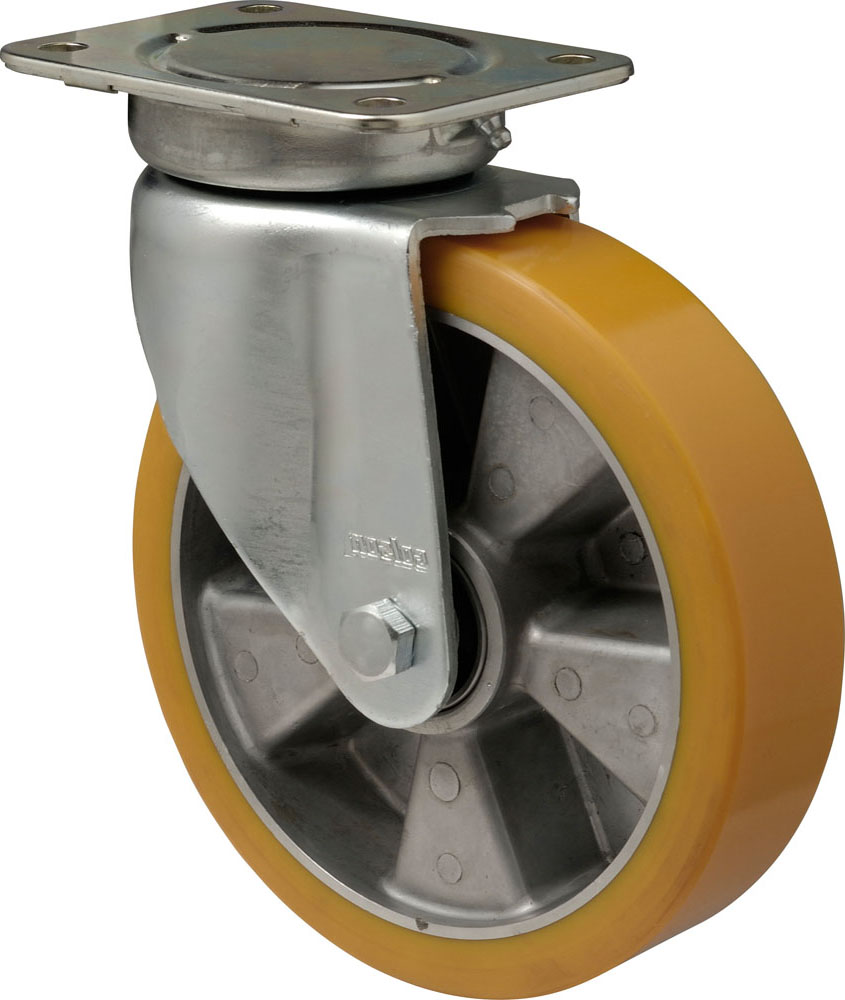

JBAU 1253 6440
JBAU 1253 6440 125 mm - 160 mm, 450 kg - 600 kg
Technical data
| Diameter | 125 mm |
| Wheel width | 50 mm |
| Hub length | 62 mm |
| Height | 160 mm |
| Offset | 50 mm |
| Top plate dimensions | 135 x 112 mm |
| Top plate hole diameter | 11 mm |
| Dist. between holes | 105 x 75,80 mm |
| Brake swivel radius | 145 mm |
| Load capacity | 450 kg |
| Weight | 3.4 kg |
Wheel
- Aluminium wheels with bonded-on polyurethane tyre (Shore A 92) with two deep groove ball bearings and steel collar bushes external diameter 15/20/25 mm to internal 8/10/12 mm. Operating temperatures from -20°C to + 80°C
Technical description
- Swivel fork of deep drawn zinc-coated steel Swivelhead with sealed precision
- ball bearings and a grease nippel
